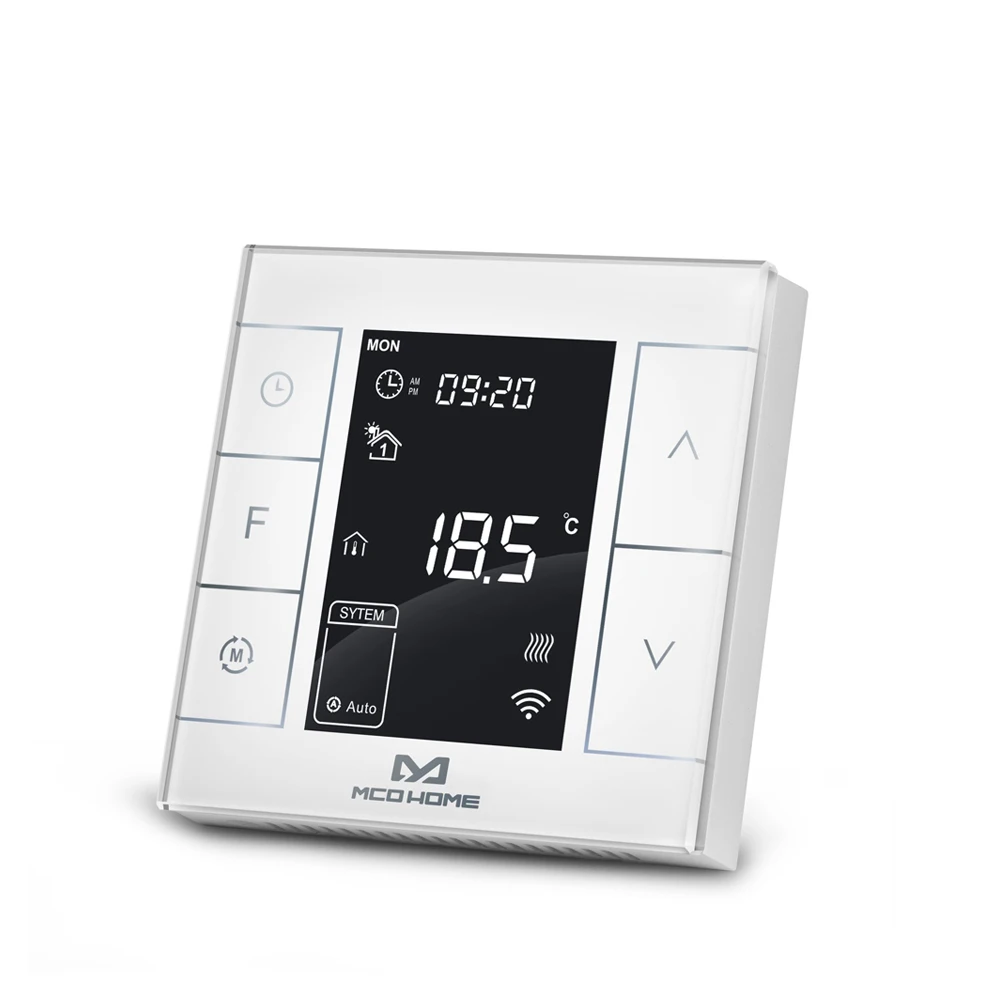

Water / Electrical Heating Thermostat is a Z-Wave Plus enabled device for
indoor temperature control.MH7H-WH is mainly applied to control wall mounted boiler, water
valve/pump etc., while MH7H-EH is for electrical heating system. The device is of high reliability
and practicability, which can be included and operated in any Z-Wave network with other Z-Wave
certified devices from any other manufacturers.
Advantages:
Capacitive touch buttons
Tempered glass panel, PC alloy enclosure
Precise temperature calibration function
Attractive appearance
Clear display, easy to operate
Specification
Power Supply：AC85-260V, 50/60HZ
Output: MH7H-WH ≤5A ; MH7H-EH≤ 16A
Self Consumption：≤1W
External Temp. Sensor(optional): NTC R25℃=15KΩ B25℃/50℃=3550K
Working Environment：0-50℃; 0-90% RH（Non-condensation)
Temperature Setting：5-37 ℃（41-99℉）（Adjustable）
Dimension：86* 86*15mm
Hole Pitch：60-61mm
| Color | Electrical Heating, Water Heating |
|---|---|
| zwave frequency | 868.4MHZ |
| feature 1 | capacitive touch buttons |
| feature 2 | temperad glass panel,pc alloy enclosure |
| feature 3 | precise temperature calibration function |
| feature 4 | attractive appearance |
| feature 5 | clear display,easy to operate |
| output | MH7H-WH,≤5A;MH7H-EH≤16A |
| self consumptio | ≤1W |
| dimension | 86*86*15mm |
| hole pitch | 60-61mm |
